Code
Tube Dia(mm) - Thread Size (R)/(G) | |
DPCVF 01-01(G) | DPCVF 03-03(G) |
DPCVF 02-02(G) | DPCVF 04-04(G) |
Male Female Fitting NPT Thread Features
Convenient One touch fittings provide instant tubing connections
Elliptical release ring facilitates pneumatic installations in confined spaces
Light manual pressure on the elliptical tools required to instantly disconnect each tube-no special tools required.
Nickel-plated brass threaded bodies ensures anti-corrosion and anti-contamination.
ALL NPT & R(BSPT) thread are pre-coated with Teflon sealant and require no additional sealing.
Most all models available in inch and metric size.
Specifications
Fluid | Air&Vacuum |
Operating Pressure | 0-1.0Mpa(150Psi) |
Negative Pressure | .-100Kpa |
Max Pressure | 1.5Mpa |
Operating Temperature | .-20-70C |
Applicable tube | PU or Nylon |

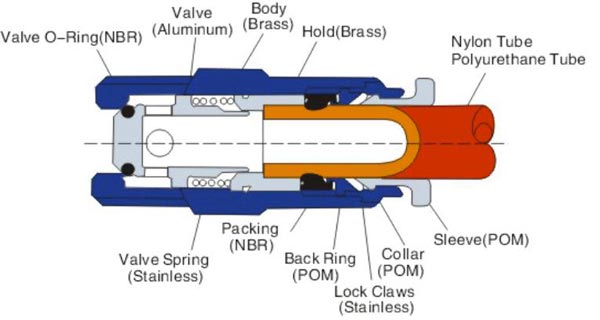

Structure Chart
What are the main types of plastic pneumatic fittings?
Plastic pneumatic fittings are classified into two main types: internal and external threading. Internal threading fittings are used for tubing connections, while external threading fittings are used for manifold connections.
How can I ensure the safety of plastic pneumatic fittings?
To ensure the safety of plastic pneumatic fittings, it is important to follow several best practices. First, ensure that the fittings are properly installed and tightened to the recommended torque. Second, avoid over-tightening, as this can damage the fitting. Third, clean the fitting before and after each use to prevent debris from entering the fitting. Finally, if you experience any leaks or failures, immediately replace the fitting.
What are the advantages and disadvantages of plastic pneumatic fittings compared to metal ones?
Compared to metal pneumatic fittings, plastic fittings have several advantages. They are lighter in weight, easier to install and maintain, and more environmentally friendly. However, plastic fittings may not be as durable as metal ones, and they may not withstand as much force or pressure as metal fittings.
How can I clean plastic pneumatic fittings?
To clean plastic pneumatic fittings, you can use a solvent or cleaning solution. Avoid using soap or detergent, as these can damage the fitting's surface. Simply immerse the fitting in the solution for a few minutes, then rinse with clean water.
What are the best practices for storing and transporting plastic pneumatic fittings?
To store and transport plastic pneumatic fittings, you should follow several best practices. First, store the fittings in a cool, dry place, away from sunlight. Second, avoid shipping with excessive force or vibration, as this can damage the fitting. Finally, label the fittings with their name, model number, and any important information.
